  2. Customizable Kit BambuLab X1C Clone, Starlex DHB D2.5x24 Base set, Hardened Stainless Steel Nozzle, 2x MCH 24V Heaters 24/30W, Thermistor

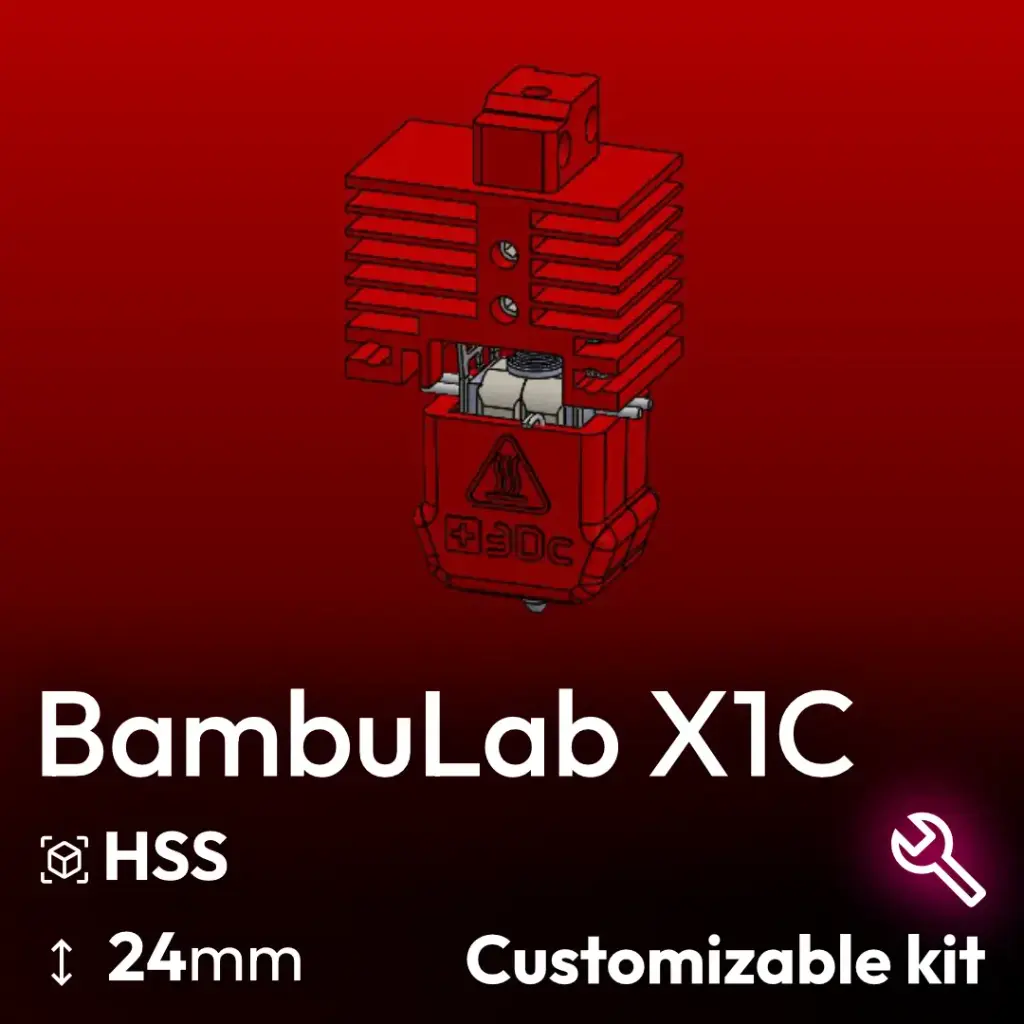

Customizable Kit BambuLab X1C Clone, Starlex DHB D2.5x24 Base set, Hardened Stainless Steel Nozzle, 2x MCH 24V Heaters 24/30W, Thermistor

https://www.swiss3dc.com/web/image/product.template/499/image_1920?unique=6cc510e

Add your choice of nozzle output, 24/30W heater...

This complete Drop In replacement kit lets you change nozzles in seconds.
The Thermistor is a clone to fit the X1C
The MCH heaters have longer wires to fit the Starlex DHB Hot-end

Included:
1x Heat Sink modified
1x HSC
1x Base Plate mini D4
1x Base Heat Set (2x HB24, 2x HB Clamp24, 1x Clip 2.5, 1x Sock)
2x MCH Heaters 24V (Wattage to be selected below)
1x Thermistor NTC 100K 3950 JST gh1.25
1x Y Harness JST 2.54


Warning Brass & Copper nozzles will not fit into this hot-end!

99.80 CHF 99.80000000000001 CHF 99.80 CHF Tax Excluded

84.90 CHF Tax Excluded

Not Available For Sale

  • MCH Wattage
  • Nozzle HSS output

This combination does not exist.

Contact Us


Terms and Conditions
14 days return, money-back guarantee
Shipping: 2-7 Busin​ess Days​

Starlex DHB is a game changer for tool free nozzle swap in seconds.

No material leak as the extremity is located into the cold section, in the heat sink.

BambuLab Clone Heat Sink with HSC and Base Plate
Starlex DHB 2.5x24 Hotend Base Set
2 MCH 24V 24/30W heaters and the NTC 100K 3950 Thermistor with JST gh 1.25 connector.

Choice of HSS nozzles

Drop in replacement

1.75mm filament

Hardened Stainless Steel nozzles 650 HV (HSS)

Simplified connections with 2x 24/30W MCH  heaters and Thermistor

BambuLab 3D Printer does support 40 to 60W heaters, it's your choice.

D2.5mm nozzles are made of stainless steel, hardened to support abrasive filaments and high temperatures.

They are D2.5mm outer diameter to reduce the thermal barrier due to lower thermal conduction of the metal used. Heat blocks must have a D2.5mm groove

Light increase of standard temperature can be needed to keep up with flow rate.

Some specifically abrasive filaments will significantly wear over time hardened nozzle.

D3.0mm nozzles are made of brass and copper. Very conductive materials, also weaker in abrasion matters without coating. Great for PLA, PetG and similar filaments.

With D3.0mm outer diameter nozzles, heat blocks also need to correspond, with D3mm groove.

Complete the Hot-end with the adapted parts below
