Set Starlex 22 Butterfly Heat Sink Micro-Swiss Cold Parts
Only Cold section of the Starlex 22 Butterfly system for Micro-Swiss 3D printer Creality and Ender mounts. (No Heat Block Set)
We do not deliver Micro-Swiss elements.
This product is no longer available.
Terms and Conditions
14 days return, money-back guarantee
Shipping: 2-7 Business Days
The fan shrouds are not supplied, to be printed by the user before dismantling the old hot set.
Find some dedicated STL files on the website https://www.swiss3dc.com/creality-butterfly

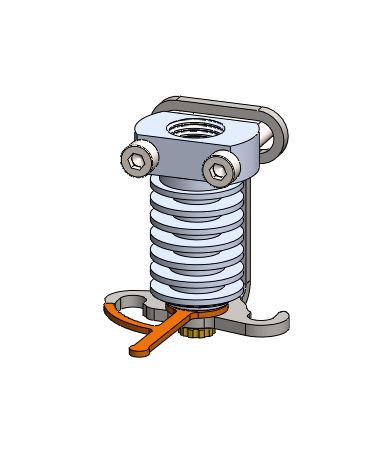

Parts Included in this Set
Starlex 22 Butterfly Clip
(1) Starlex 22 Butterfly Clip Creality & Micro-Swiss
(2) Heat Sink S3Dc Creality M6
(3) HSCG Cr 15-18 M6
(4) Compression Spring Stainless Steel
(5) HSC Grooved Handle D6 Single 01
(6) Aluminium or Plastic Heat Sink Spacer
+ PTFE Protection sheet (not shown)
+ Starlex 22 Base Set, HBT 6.5, Nz15-04

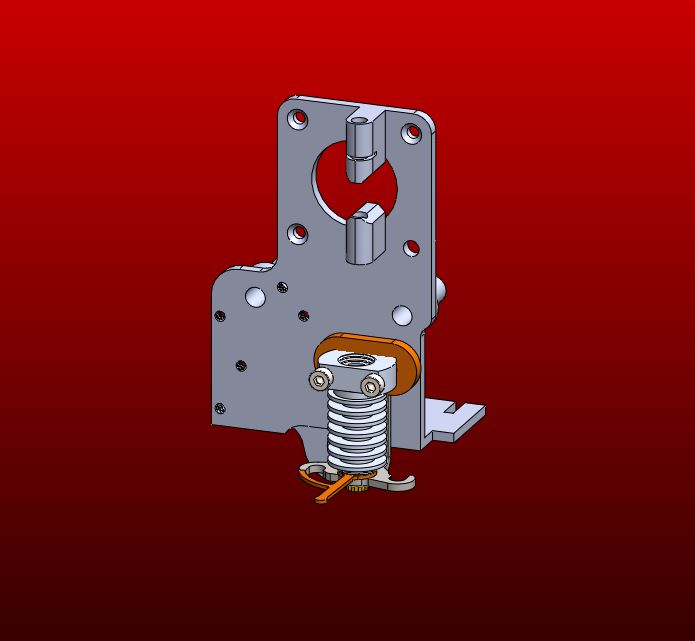

For accurate mounting, it is important to have the Butterfly Clip and the Heat Sink perfectly parallel. 3.2mm is an average spacer thickness, might need to reach 3.00 to 3.4mm depending on the Butterfly Clip and the Printer support.
Parts NOT Included in this Set
Starlex 22 Base Set
(1) Starlex 22 Copper Heat Block
(2) Starlex 22 Key 2x
(4) Heat Break Tube Stainless Steel 7.5
Micro-Swiss Gantry - Not Included
This Part Can Be Purchased @micro-swiss.com
