Set Starlex 22, Full Heat Set, HBT65, NzB15-04

Set Starlex 22, Full Heat Set, HBT65, NzB15-04

https://www.swiss3dc.com/web/image/product.template/242/image_1920?unique=c9cfd3a

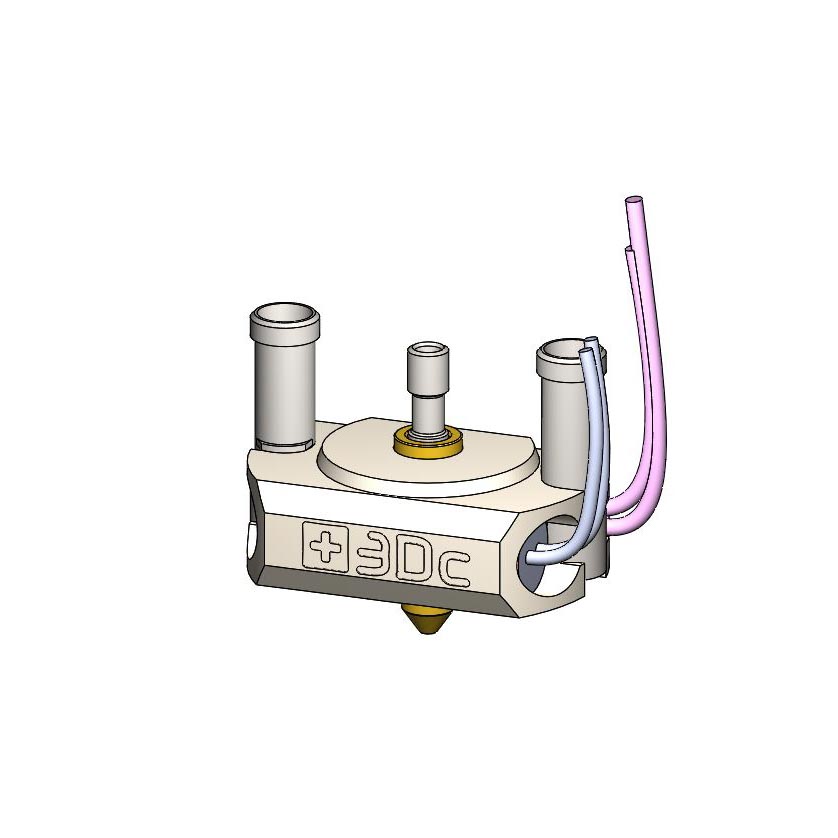

Starlex 22 complete heating Set with a 0.4 brass nozzle, 6.5mm Heat Break Tube, Heater 24V 40W, Thermistor 104NT4

This product is no longer available.


Terms and Conditions
14 days return, money-back guarantee
Shipping: 2-7 Busin​ess Days​

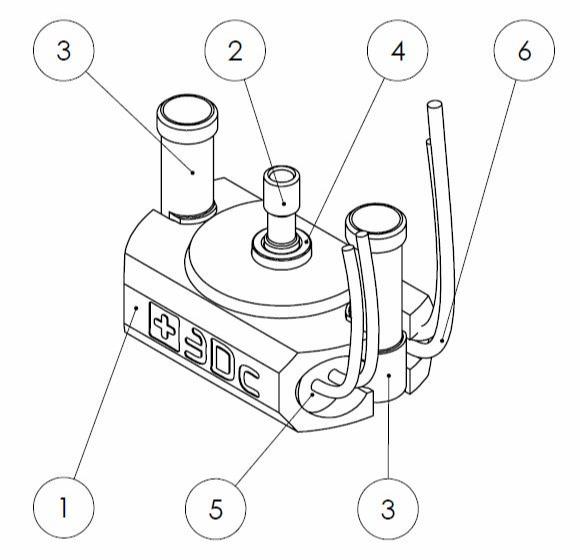

Parts Included in this Set:

Starlex 22 Full Heat Set

+ HBT 6.5 + Nz 0.4

(1) Starlex 22 Copper Heat Block
(2) Heat Break Tube Stainless Steel 6.5
(3) Starlex 22 Key 2x
(4) Nozzle Brass 15 -  0.4mm
(5) Heat cartridge 24V, 40W (short wires 250mm)
(6) Thermistor 104NT4

+ PTFE 22 Heat Block Protection Sheet (not shown)
+ Wire screw connector (not shown)

Starlex 22

Description :


The Starlex 22 full heat set is to manage easy hot end swap for the Butterfly mount.
The Nozzle swap include all the parts in this set, with the wire connector and the PTFE sheet.

The heat sink connector and locking key system is not included.

Check out the system you are using, Twist or Butterfly. For the Twist system, HBT is 7.5mm For the Butterfly system it is the HBT 6.5mm
