Base Plate

The Base Plate in the Starlex DHB Eco-system is as its name defines, the part that will be at the base of the whole Starlex DHB Eco-system to hold the hot-end under the heat sink or extruder.

Central diameter of this base plate will need to be selected accordingly to the heat sink or extruder fixing hole you will mount it on. It can be a screw or a cylinder mount, many options are available.

Make sure the threaded length can tighten the Base plate. Shorter HSC would fit most heat sink, Bowden tube will need to go all way down to the HSC.

Metric thread or Diameter for this part is the same dimension.

Dx L the L means lock, there is a flat groove into the central hole to hold the Base Plate in position. Fine when the Heat Sink is threaded and circular, otherwise, orientation needs to be free, without this flat groove.

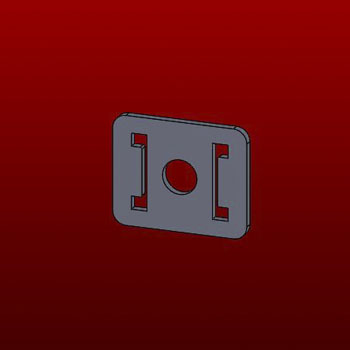

Base Plate D4
Rectangular Stainless Steel Base Plate D4
5.90 CHF 5.9 CHF
Base Plate D4 Rounded
Rectangular Rounded Edges Stainless Steel Base Plate D4, Voron, Revo
5.90 CHF 5.9 CHF

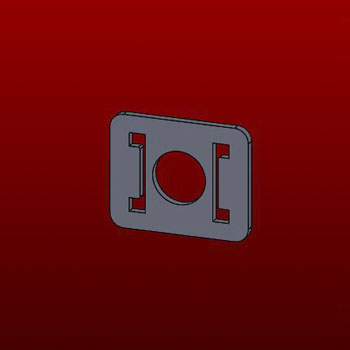

Base Plate D6
Rectangular Stainless Steel Base Plate D6
5.90 CHF 5.9 CHF

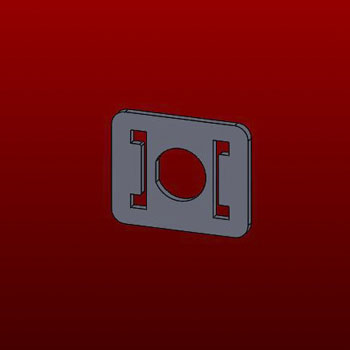

Base Plate D6 L
Rectangular Stainless Steel Base Plate D6 Lock
5.90 CHF 5.9 CHF

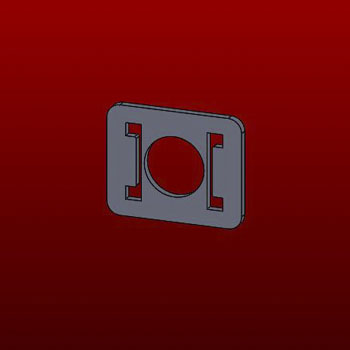

Base Plate D7
Rectangular Stainless Steel Base Plate D7
5.90 CHF 5.9 CHF

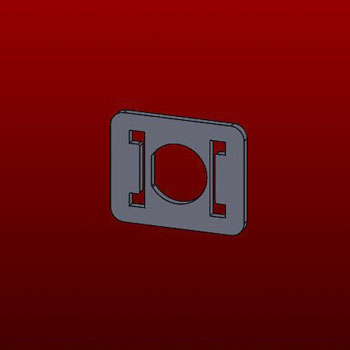

Base Plate D7 L
Rectangular Stainless Steel Base Plate D7 Lock
5.90 CHF 5.9 CHF
Base Plate D7-L D22
Round Stainless Steel Base Plate D7 Lock OD 22mm
7.90 CHF 7.9 CHF

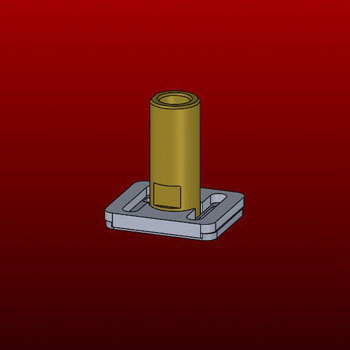

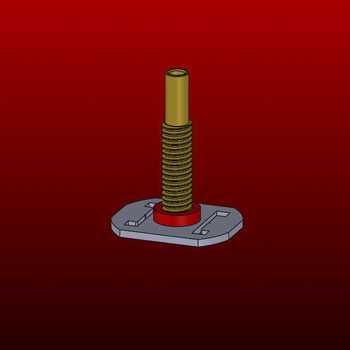

Base Plate Set M4 Revo + Spacer + Spring In
Revo M4 HSC Base Plate D4 Rounded & Tube Spacer
21.90 CHF 21.9 CHF

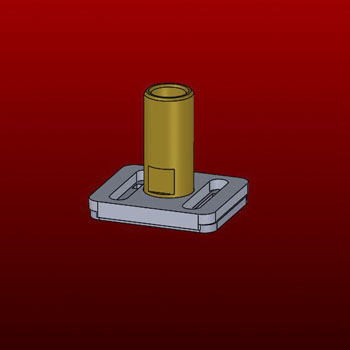

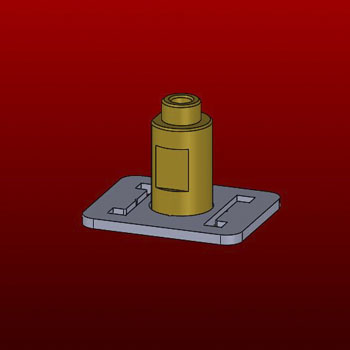

Base Plate Set D6S for Bondtech LGX + Spacer + Spring In
Base Set includes:
Base plate D6L
HSCS D6 plate
HSC D6L
Spring in
21.90 CHF 21.9 CHF
Base Plate Set M7S x 15 + Spacer + Spring In
M7S = Base plate D7 + HSC thread M7 + Spacer HSCS D7 + Spring
21.90 CHF 21.9 CHF
Base Plate Set M7S for E3D V6 Original HS + Spacer + Spring In
This Base Set will fit into an original V6 Heat Sink.
It will increase 7mm the Nozzle height, fan shroud will need to be adapted.
The electrical wiring will need to be adapted to support the 2x30W MCH heaters and the Thermistor (NTC 100K 3950 - JST gh1.25).
21.90 CHF 21.9 CHF
Base Plate Set Round M7S x 10 + Spacer + Spring In
M7S = Base plate D7R22 + HSC thread M7x10 + Spacer HSCS D7 + Spring In
21.90 CHF 21.9 CHF
Base Plate Set M4 + Sprite Clone Heat Sink only + Spring In
Replacement hotend, original height + 0.8mm with DHB 22.5 only
Inner Fan guide to be printed by user (STL)
49.90 CHF 49.9 CHF
Base Plate Set M7 + E3D V6 Adapted M12 HS + Spring In
Replacement hot-end, same height with DHB 22.5 only
39.90 CHF 39.9 CHF
Base Plate Set M7 + E3D V6 Adapted Groove HS (DHB22.5) + Spring In Cold Set
This Cold set is a drop in replacement, to keep same Nozzle height with DHB 22.5 only, any other Hot-end can also be mounted, increasing Z height and flow performance.
It includes: Groove V6 modified HS, HSC M7 (K), Base plate D7L (M), Spring in.
Pre-mounted
39.90 CHF 39.9 CHF
Prusa Mini DHB HS Base Set
Cold Section Only in this Set. For an easy change over, the original heat sink (The most expensive part !) has been modified to integrate the Starlex DHB 22.5mm
Wiring will need to be adapted for Heater (2x30W 24V) and Thermistor (NTC 100K 3950 - JST gh1.25)

Plastic fan support can be reprinted, or modified, DIY
56.90 CHF 56.9 CHF
