Starlex DHB Shop

Heat sink

Redefined heat sinks length are designed to accommodate the additional height introduced by the system keeping the original overall length.

Heat blocks

Heat blocks are available in three lengths: 22.5mm, 24mm, and 33mm and two diameters, 2.5 and 3mm depending on the Nozzle material. Heater & thermistor NOT included.

Nozzles

Choose the nozzle with corresponding length and diameter, in Hardened Stainless Steel, Brass or Copper.

Heaters & Connectors Choose one or two heaters for the heat blocks with the matching connectors for your printer and bulb thermistor.

BrandsView available parts by brands

Heaters

We use the flat ceramic heaters (MCH) for our Starlex Dual Heat Block hotend. Its flat surface improves highly the heating conduction to the copper heat blocks.

The Starlex DHB is flexible in heating matters. The hotend can be mounted with a heater on one or both sides, for longer heat blocks, they can also be mounted on the higher and lower level, again, to enjoy maximum flexibility.

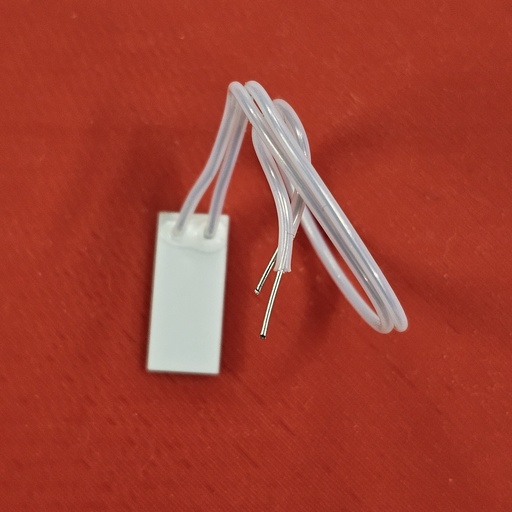

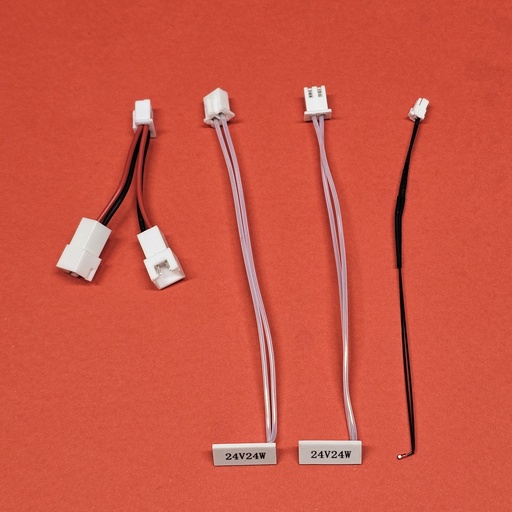

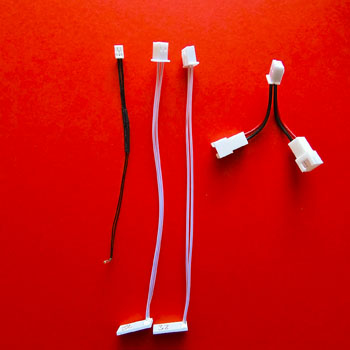

BambuLab P1P-P1S 2xMCH 30W + Thermistor Clone P1P - P1S Heater / Thermistor modified with 2x30W 24V MCH Heater ( instead of 1x 48W 24V ) 37.90 CHF 37.9 CHF	BambuLab X1C 2xMCH 30W 24V + Thermistor + Harness Set Drop In replacement for Starlex DHB hot-end mounted in the BambuLab X1C 23.90 CHF 23.9 CHF	MCH Heater 30W 12V 15x7 Microfit 3.0 7.90 CHF 7.9 CHF	MCH Heater 30W 12V 15x7 No Connector 7.90 CHF 7.9 CHF

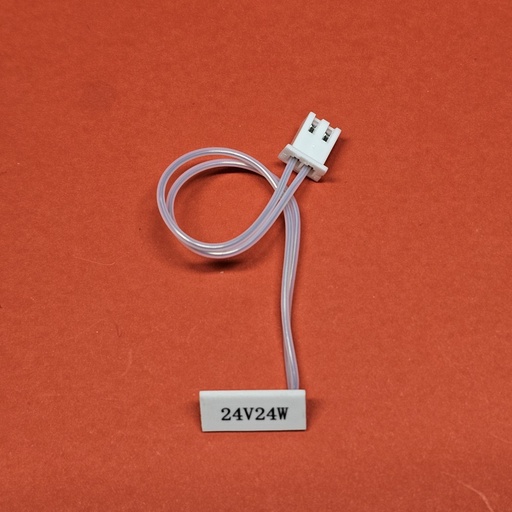

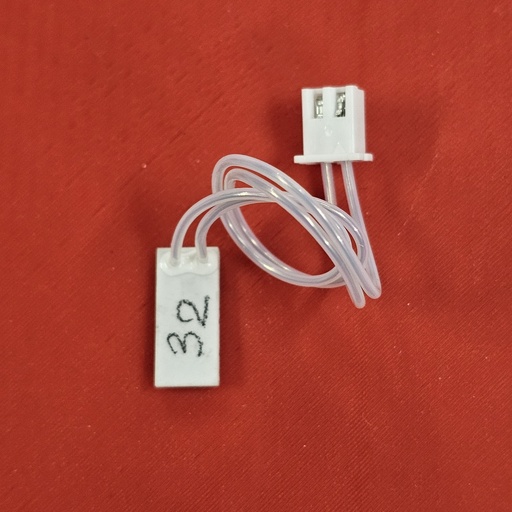

MCH Heater 30W 24V 15x7 JST xh 2.54 7.90 CHF 7.9 CHF	MCH Heater 30W 24V 15x7 Microfit 3.0 7.90 CHF 7.9 CHF	MCH Heater 30W 24V 15x7 No Connector 7.90 CHF 7.9 CHF	MCH Heater 40W 24V 15x7 No Connector 7.90 CHF 7.9 CHF
MCH Heater 40W 24V 15x7 JST xh 2.54 7.90 CHF 7.9 CHF	Set 2x MCH Heater 30W 12V JST 2.54 + Harness JST 2.54 16.50 CHF 16.5 CHF	Set 2x MCH Heater 30W 24V JST 2.54 + Harness JST 2.54 16.50 CHF 16.5 CHF	Set 2x MCH Heater 30W 24V Microfit 3.0 + Harness Microfit 3.0 16.50 CHF 16.5 CHF
Y Harness JST xh 2.54 connectors Build with AWG 22 wires, can support maximum 60W 24V 3.50 CHF 3.5 CHF	Y Harness Microfit 3.0 connectors Build with AWG 22 wires, can support maximum 60W 24V 3.50 CHF 3.5 CHF

All Swiss3Dc designed parts are made and produced in Switzerland, standard parts can be imports.

The colors of the parts on the images in the shop and on the website are for differentiation purposes only.
