Set Starlex 22, Full Heat Set, HBT75, NzB15-04
Starlex 22 complete heating Set with a NzB15-0.4 brass nozzle, 7.5mm Heat Break Tube, Heater 24V 40W, Thermistor 104NT4
This product is no longer available.
Terms and Conditions
14 days return, money-back guarantee
Shipping: 2-7 Business Days
Parts included in this Set:

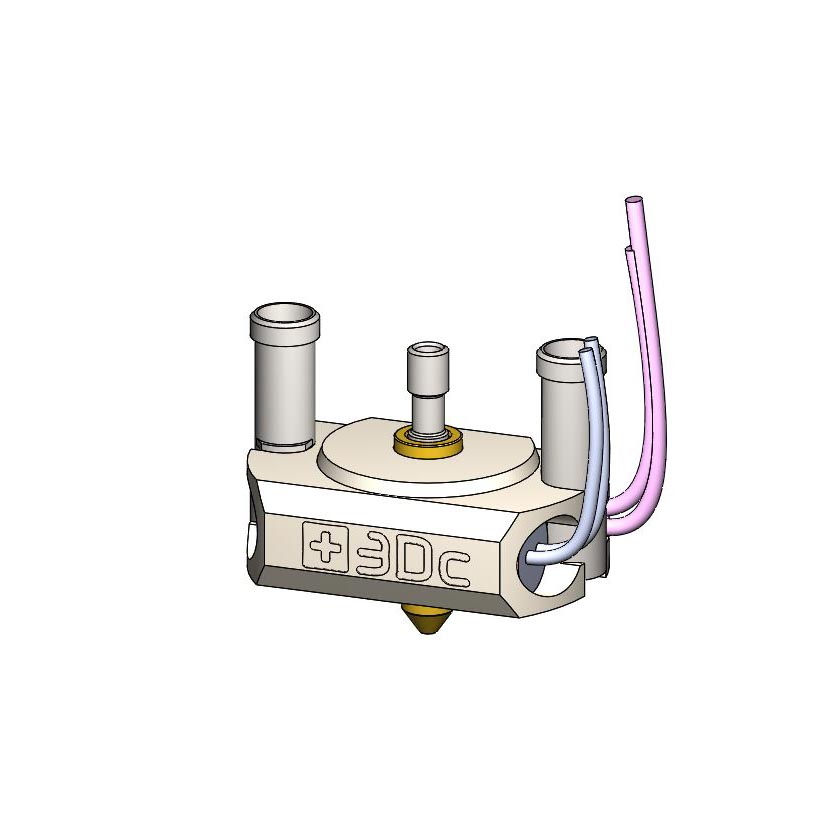

Starlex 22 Full Heat Set
+ HBT 7.5 + Nz 0.4
(1) Starlex 22 Copper Heat Block
(2) Heat Break Tube Stainless Steel 7.5
(3) Starlex 22 Key 2x
(4) Nozzle Brass 0.4m
(5) Heat cartridge 24V, 40W (short wires 250mm)
(6) Thermistor 104NT4
+ PTFE 22 Heat Block Protection Sheet (not shown)
+ Wire screw connector (not shown)

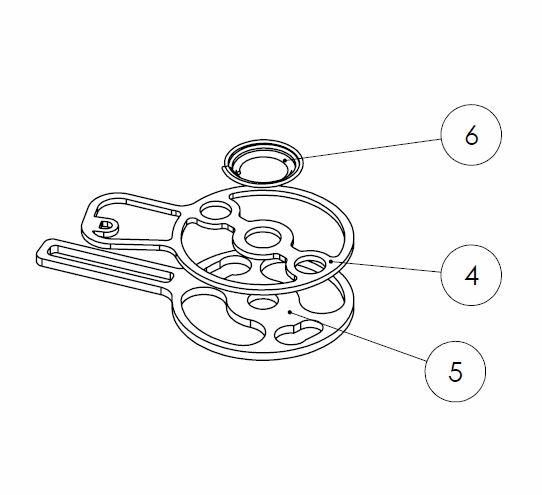

Parts Not included :
Locking system
The locking system and the heat sink connector are not included, but necessary to mount this Set.
(4) Key lock guide D6 (4) Key lock guide D7
(5) Key lock M6 (5) Key lock M7
Description :
The Starlex 22 full heat set is to manage easy hot end swap.
The nozzle swap include all the parts in this set, with the wire connector and the PTFE sheet.
The heat sink connector and locking key system is not included.
Check out the system you are using, Twist or Butterfly. For the Twist system, HBT is 7.5mm. For the Butterfly it is the HBT 6.5mm

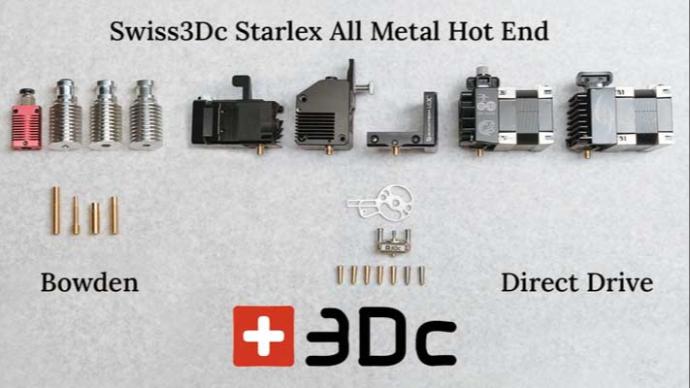

Compatibility :
Interchangeable set for Starlex 22 system
It is an easy heat set swap that will fit all Starlex 22 systems.
